Sterilizable PH Electrode GT135, VP6

Name: Sterilizable PH Electrode GT135, VP6
Brand: Innovative Analyticals
Price: 31500.0 INR
Availability: InStock

Price 31500.0 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Sterilizable PH Electrode GT135, VP6 Specification

Feature
High temperature resistance, pressure resistant, sterilizable

Core Components
pH electrode, glass body, ceramic junction

Automation Grade
Manual

Measurement Range
pH 0 to 14

Accuracy
0.01 pH

Model No
GT-135

Capacity
Designed for process volume applications

Equipment Materials
Glass, Stainless Steel, Plastic

Type
Sterilizable pH Electrode

Usage
Sterilization and pH measurement in biotechnological and food industries

Temperature Range
0-135 Celsius (oC)

Display Type
Electrode (no display)

Dimension (L*W*H)
120 Millimeter (mm)

Weight
200 GSM (gm/2)

Maximum Operating Pressure
0.2 MPa

Sterilization Cycles
Up to 50 cycles

Electrolyte Type
Gel-filled

Storage Temperature
-10°C to +50°C

Response Time
<30 seconds

Connector Type
VP 6 (VarioPin)

Cable Length
1 meter

Body Material
High quality glass

Junction Type
Ceramic, Single

Application
Fermentation, food processing, pharmaceutical, laboratory

Shaft Diameter
12 mm

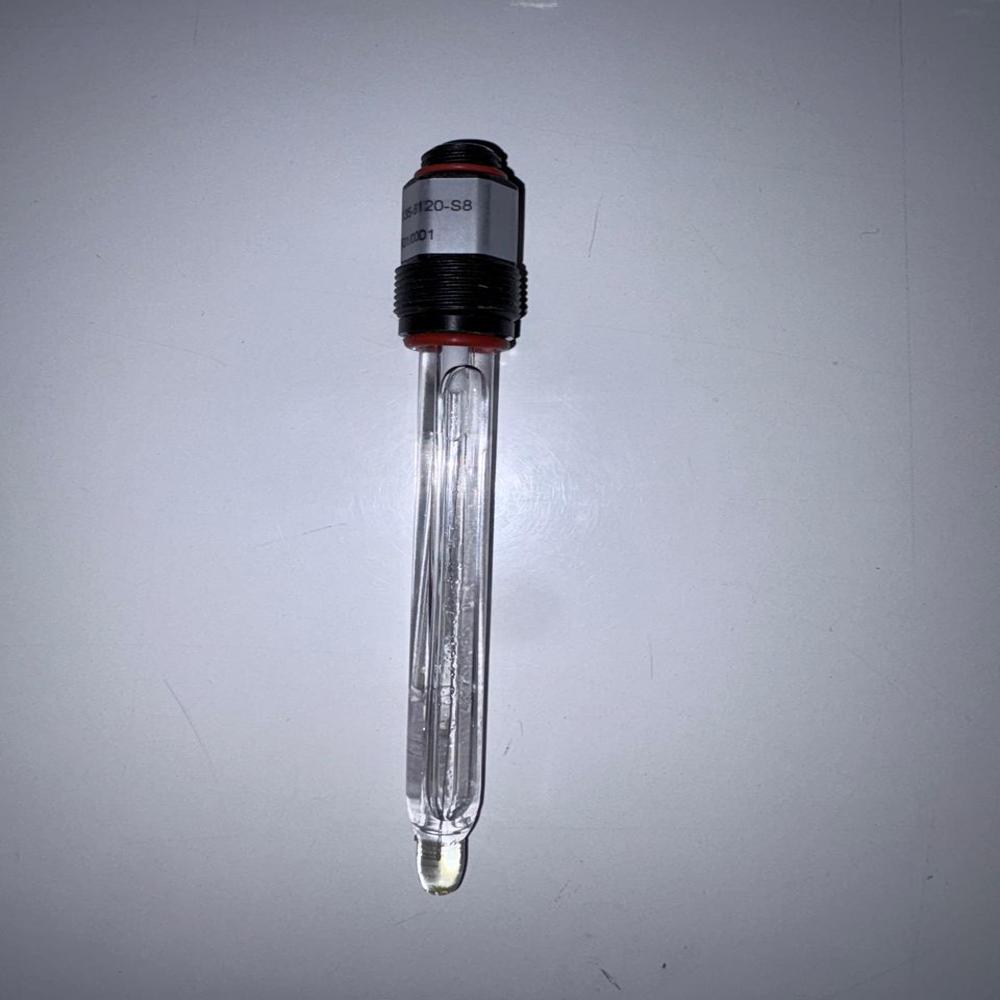

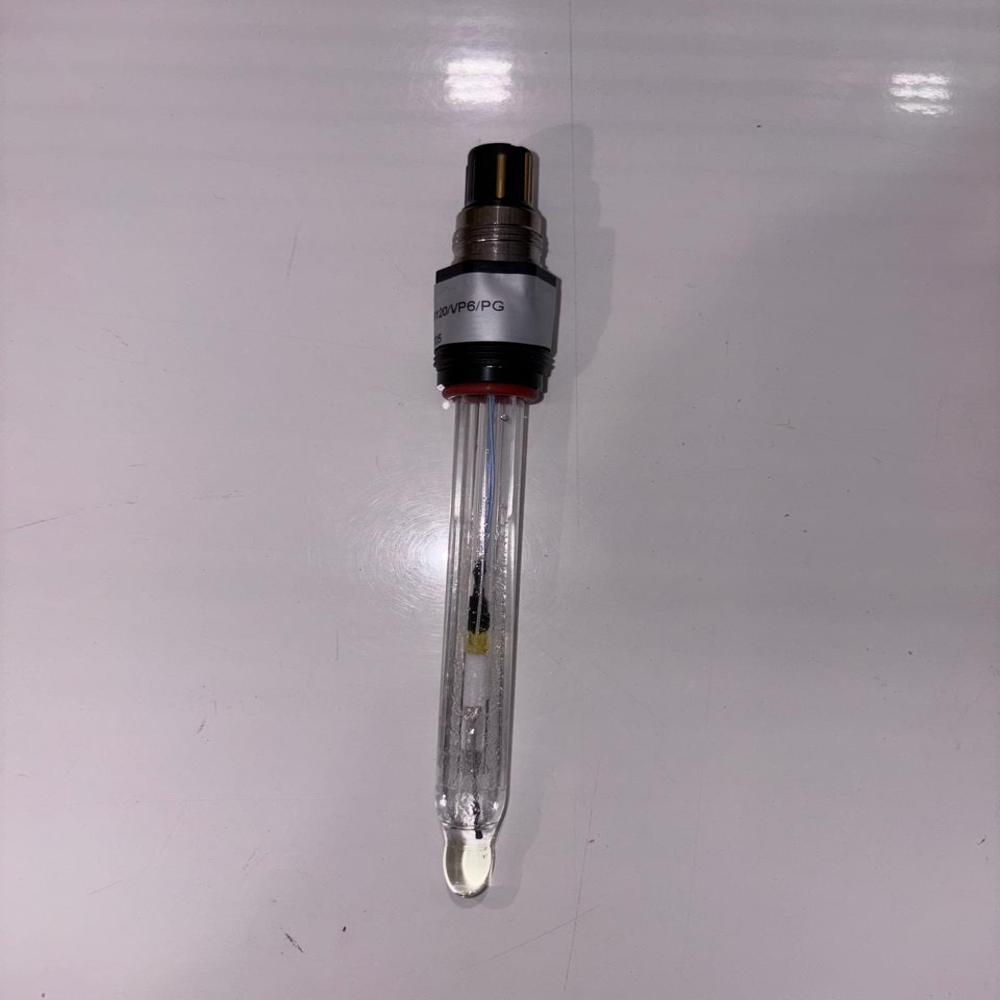

About Sterilizable PH Electrode GT135, VP6

Sterilisation-ready design ensures the probe is engineered for steam sterilisable and autoclavable applications, making it ideal for sterile biotech environments
Robust construction features a durable glass body with a spherical pH bulb, minimizing the risk of breakage during use.
Wide measurement range capable of measuring pH levels from 0 to 14, suitable for various applications.
High-temperature and pressure tolerance, it operates effectively in temperatures up to 130c and pressures up to 10 bar, ensuring reliability in demanding conditions.
Standardised connectivity with a PG13.5 thread and S8 connector, ensuring compatibility with a wide range of pH instruments and systems. Cables sold separately.
Suitable for use in both small bioreactors and large-scale fermentation processes, offering flexibility across different scales of operation.

Durability and Sterilization Support

The GT135 pH electrode is built for longevity and repeated sterilization, withstanding up to 50 sterilization cycles and operating reliably at pressures up to 0.2 MPa and temperatures up to 135C. This makes it an optimal choice for rigorous applications in food, biotech, and pharmaceutical industries.

Precision for Critical Measurements

With an accuracy of 0.01 pH and a response time of less than 30 seconds, the GT135 provides dependable and timely results, essential for process monitoring and laboratory quality assurance. Its glass body and ceramic junction contribute to stable performance even in challenging environments.

Versatile Application Range

The GT135 is suitable for a wide variety of process volume applications in fermentation, food processing, and lab work. Its robust construction and wide measurement range (pH 0-14) ensure adaptability in both routine and specialized measurement tasks.

FAQ's of Sterilizable PH Electrode GT135, VP6:

Q: How do I sterilize the GT135 pH electrode, and how many cycles can it withstand?

A: The GT135 pH Electrode is designed for sterilization through standard autoclave or in-line steam processes. It can withstand up to 50 sterilization cycles between 0-135C, ensuring reliable performance for repeated use in hygienic environments.

Q: What applications is the GT135 pH electrode recommended for?

A: This electrode is ideal for fermentation, food processing, pharmaceutical production, and laboratory environments, providing precise and consistent pH measurements even under demanding process conditions.

Q: When should the GT135 pH electrode be replaced?

A: Replacement is recommended after approximately 50 sterilization cycles or if there is any noticeable decline in response time, accuracy, or physical damage, ensuring continued reliable measurements.

Q: Where can the GT135 pH electrode be installed or used?

A: The GT135 can be installed in reactors, tanks, pipelines, or laboratory beakers where pH measurement is needed under high temperature and moderate pressure conditions, especially in process volume applications.

Q: What is the process to connect and set up the GT135 pH electrode?

A: Simply connect the electrode using its VP 6 (VarioPin) connector and 1 meter cable to compatible measurement equipment. The installation is manual, and the electrode integrates easily with most standard pH meters used in industry and research labs.

Q: How does using the GT135 pH electrode benefit my process monitoring?

A: The GT135 provides rapid, highly accurate pH measurements even after multiple sterilizations, supporting consistent product quality, regulatory compliance, and efficient process control in critical industrial environments.
